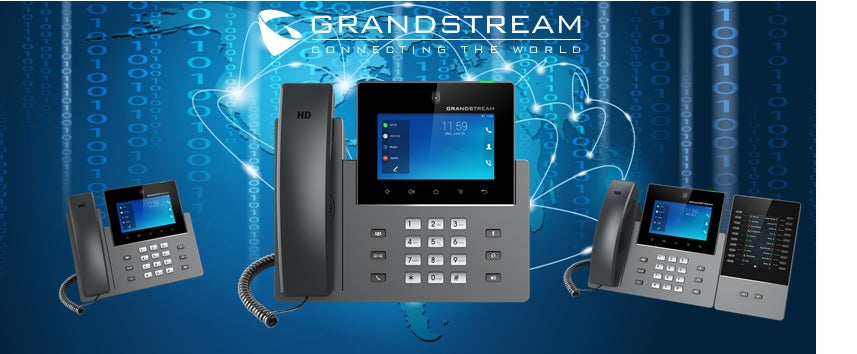

Integrated Video Communications Solution GXV3350

Request a quote for prices

Categories: ,
Compare

Description

Integrated Video Communications Solution

GXV3350

High-End Smart Video Phone for AndroidTM

The GXV3350 IP Video Phone for Android combines a 16-line IP video phone with a multi-platform video collaboration solution and the functionality of an Android tablet to offer an all-in-one communications solution. This IP video phone delivers a powerful experience through its 5 inch 1280×720 capacitive touch screen, tiltable camera, HDMI output, dual microphones and support for 720p HD video. The GXV3350 adds dual Gigabit ports with PoE/PoE+, integrated Wi-Fi and Bluetooth support. It also runs Android 7.0 and offers instant access to hundreds of thousands of Android apps. By combining a state-of-the-art IP video phone, an advanced video  collaboration solution, and the functionality of an Android tablet, the GXV3350 offers businesses throughout the world  a  powerful  desktop  communication  and  productivity  solution.



Built-in 1 mega-pixel CMOS tiltable camera for video calling with privacy wheel

Built-in Bluetooth for syncing with mobile devices and connecting Bluetooth headsets



Dual-switched auto-sensing 10/100/1000Mbps network ports

(2.4GHz & 5GHz)

Built-in PoE/PoE+ for power and network connections

Dual-mic HD speakerphone with noise reduction, advanced echo cancellation & excellent double- talk performance





4-core 1.3GHz ARM Cortex A53 processor with 2GB RAM and 8GB eMMC Flash

5.0” (1280×720)

capacitive 5-point touch screen HD TFT LCD

Peripherals include HDMI- out, USB, headset jack, EHS

6-way audio conferencing & 3-way 720p 30fps HD video conferencing  capability

Protocols/Standards

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6,

OpenVPN®

Network Interfaces

Dual switched 10/100/1000 Mbps ports with integrated PoE/PoE+

Graphic Display

5.0 inch 1280×720 capacitive touch screen (5 points) HD TFT LCD

Camera

Built-in 1 mega-pixel CMOS tiltable camera with privacy wheel, 720p 30fps

Bluetooth

Yes, integrated Bluetooth 4.2 + EDR

Wi-Fi

Yes, dual-band (2.4GHz & 5GHz) with 802.11 a/b/g/n

Auxiliary Ports

RJ9 headset jack (allowing EHS with Plantronics headsets), extension module port, USB port, HDMI-out (1.4 up to 720p30fps)

Feature Keys

11 functions keys for CONFERENCE, TRANSFER, SEND/REDIAL, MUTE, EARPHONE, SPEAKER-

PHONE, VOLUME -/+. 3 dedicated Android keys for HOME, MENU, and BACK

Voice Codecs and Capabilities

Wide-band Opus, wide-band G.722, G.711µ/a, G. 729A/B, G.726-32, iLBC, in-band and out-of- band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS

Video Codecs and Capabilities

H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps, 3-way video conference (720p@30fps), anti-flickering, auto focus and auto exposure

Telephony Features

Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 6-way audio conference(including the host), shared-call-appearance (SCA) / bridged-line-appearance (BLA), programmable key, downloadable contacts (XML, LDAP, up to 1000 items), call record(local and server), call log (up to 1000 records), call waiting, auto answer, XML customization of screen, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redun- dancy & fail-over

Extension Module

Yes, can power up to 4 GBX20 EXT modules which feature a 272×480 color LCD, 20 quick-dial/ BLF keys with dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit

Sample Applications

Local apps: Contacts, Call History, File Manager, Programmable Key, Settings, Browser,

Voicemail, Calculator, Clock, Recorder, GS Market, etc.

Supports third-party Android apps such as Microsoft Teams API/SDK available for advanced custom application development

Android

Runs Android 7.0

Applications Deployment

Supports Android 7.0 compliant applications to be developed, downloaded and run on the

device with provisioning control

HD Audio

Yes, 2 omnidirectional microphones, HD handset and speakerphone with support for wideband audio

Base Stand

Yes, base stand with three adjustable levels

QoS

Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

User and administrator level passwords, MD5 and MD5-sess based authentication, 256bit AES

encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control

Multi-language

English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean and Japanese and more

Upgrade/Provisioning

Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069, AES encrypted XML configuration file, or Grandstream Device Management System (GDMS)

Power & Green Energy Efficiency

Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4

Temperature and Humidity

Operation: 0°C to 40°C,  Storage: -10°C to 60°C,

Humidity: 10% to 90% Non-condensing

Package Content

GXV3350 phone, handset with cord, base stand, universal power supply, network cable, quick

installation guide, GPL license

Compliance

FCC: Part 15 Class B; Part 15 Subpart C(15.247); Part 15 Subpart E(15.407); Part 68 HAC IC: RSS-247; RSS-Gen; RSS-102; IECS-003; CS03

CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; EN 301 489-1; EN 301 489-17;

EN 300 328; EN 301 893; EN 62311

RCM: AS/NZS CISPR 32; AS/NZS 4268; AS/NZS 62368.1; AS/CA S004
