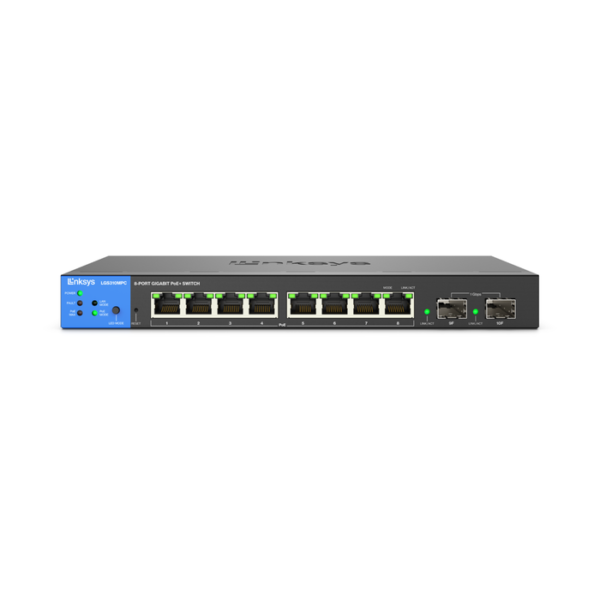

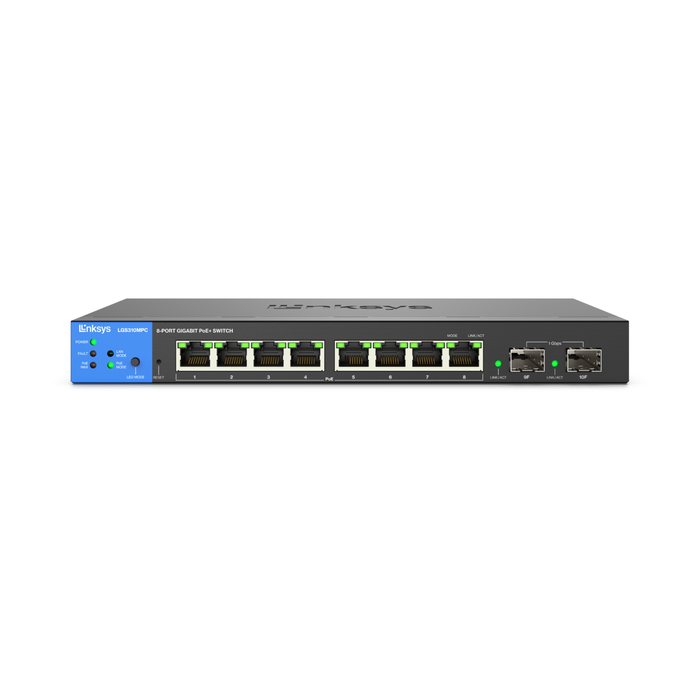

Linksys Business Switch – 8 Port 8-Port Managed Gigabit PoE+ Switch with 2 1G SFP Uplinks 110W TAA Compliant (LGS310MPC)

Request a quote for prices



Business Switch – 8 Port8-Port Managed Gigabit PoE+ Switch with 2 1G SFP Uplinks 110W TAA Compliant (LGS310MPC)


The Linksys LGS310MPC 8-Port Managed Gigabit PoE+ Switch is designed for business-class management, security, speed, and quality of service with 8 Gigabit Ethernet PoE+ ports, 2 Gigabit SFP uplinks and 110W of total PoE power budget.

Switch Type

  • Managed


Switch Ports

  • 8


PoE+ Budget

  • 111W – 250W


PoE Support

  • Yes


Power Consumption

  • 133.77W


Jumbo Frame (FE, GE)

  • 10Kbytes



  • Power, Fault, PoE Max, LAN Mode, PoE Mode



  • Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support



  • 256MB


Forwarding Rate

  • 14.88 Mpps


Dimensions (LxWxH)

  • 240 x 105 x 27 mm
  • 9.45 x 4.13 x 1.06 in



  • 636 g (1.40 lb)


Number of VLANs Supported

  • 256 active VLANs (4,096 range)


Operating Humidity

  • 10 to 90% RH


Operating Temperature

  • 0 to 40°C (32 to 104°F)



  • 2 Gigabit SFP
  • 8 Gigabit Ethernet


Power Dedicated to PoE+

  • 110W


Security Features

  • 802.1x Radius authentication
  • DHCP snooping
  • DOS Attack Prevention
  • IP-MAC binding
  • Port Isolation (Protected Ports)
  • Port Security (256 max entries per port)


Rate Limiting

  • Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps


Power Input

  • 100–240V
  • 2.2A
  • 50–60 Hz


Spanning Tree

  • IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances)


Quality Of Service

  • 8 hardware queues
  • Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
  • Strict, Weighted Round Robin (WRR)


Storage Temperature

  • -20 to 70°C (-4 to 158°F)


Warranty and Support

  • 2 Year Warranty (Australia and New Zealand)
  • 5 Year Warranty (most countries)



  • Embedded remote monitoring (RMON 1, 2, 3, 9) software agent support for enhanced traffic management, monitoring, and analysis


MAC Address Table Size

  • 8K


Switching Capacity

  • 20 Gbps


HOL Blocking Prevention

  • Head of line (HOL) blocking prevention


Auto Voice VLAN

  • Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels


Other Management

  • Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP


Link Aggregation

  • IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group


Access Control

  • Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny


Storm Control

  • Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps


Management Interface

  • HTTP



  • Static Routing, IPv4 (63 max entries), IPv6 (21 max entries)



  • Version 1
  • Version 2c
  • Version 3


Storage Humidity

  • 5 to 95% RH (non-condensing)


IGMP Snooping

  • IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups


Power Saving

  • EEE


Port Mirroring

  • Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer


Firmware Upgrade

  • Web Browser (HTTP/HTTPS)

    Getting to know the Linksys LGS310MPC 8-Port Managed Gigabit PoE+ Switch with 2 1G SFP Uplinks 110W TAA Compliant

    The Linksys LGS310MPC 8-Port Managed Gigabit PoE+ Switch with 2 1G SFP Uplinks 110W TAA Compliant offers a quick and easy solution to extend your office network.  It features gigabit speed ports, a web interface for easy configuration and management, and PoE+ support for networking devices to be located anywhere without the need for alternating current (AC) outlets.  To learn more, click here.

    User-added image

    Main Features

    • 110W PoE+ Power Budget
    • Static Routing
    • Internet Group Management Protocol (IGMP) Multicast
    • 802.1q VLAN Tag
    • Access Control List (ACL)
    • Command Line Interface (CLI) Access support
    • 802.1x Radius Authentication
    • Port Mirroring
    • Link Aggregation
    • Port Security
    • 802.1p QoS
    • Bandwidth and Storm Control
    • Can be placed on a desktop or wall-mounted
    • External power supply:  AC power 100V – 240V AC at 50 – 60 Hz
    • Dimensions (D x W x H):  105 mm x 240 mm x 27 mm
    • Weight:  636 g

    User-added image

    User-added image

    • Eight PoE+ Gigabit ports
    • Two SFP 1 Gbps ports
    • DC 12V power port (located on the back panel)
    • RESET button – press and hold for more than 10 seconds to reset the switch to factory defaults
    • LED MODE button – push to toggle between LAN or PoE mode display
    • Rocker style power ON/OFF switch (located at the back panel)

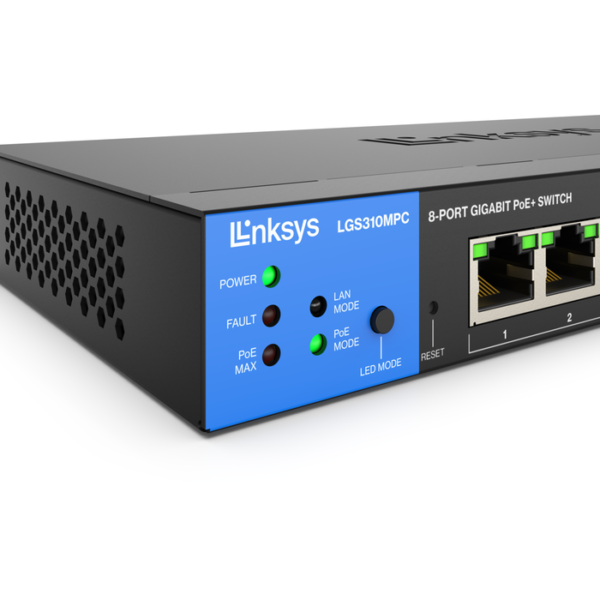

    Indicator Lights

    • POWER
    • FAULT
    • PoE MAX
    • PoE MODE
    • LAN MODE
    • LINK/ACT

    To learn about the Linksys LGS310MPC’s light behavior, click here.

    Browser Requirements

    • Latest Google Chrome™ version (minimum version 80.0 or later)
    • Latest Firefox® version (minimum version 72.0 or later)

    Package Contents

    • Quick start guide
    • Mounting kit + two screws and two anchors
    • Power adapter (120W AC/DC;  Single output:  54V DC/2.22A)
