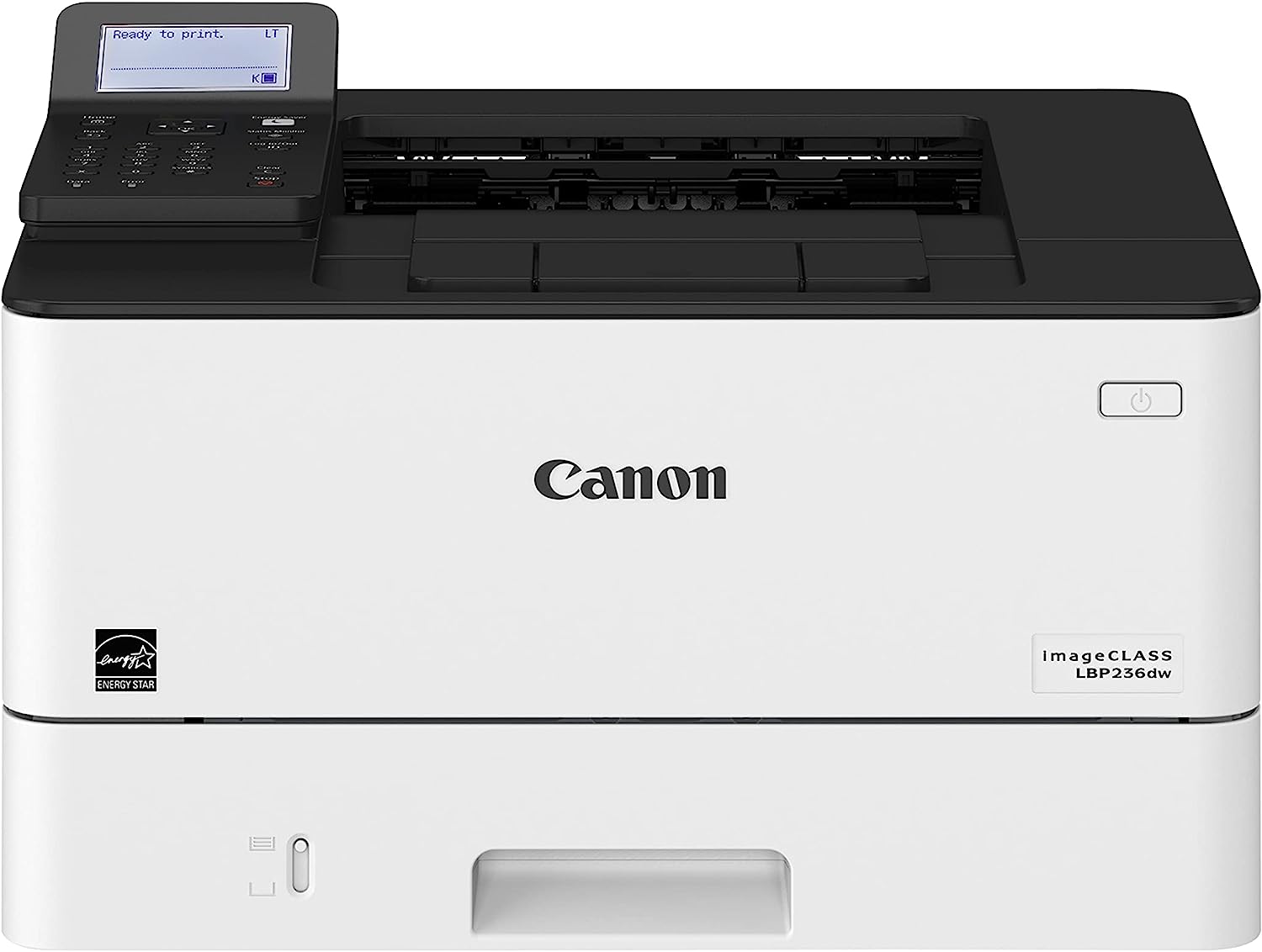

Canon i-SENSYS LBP236dw Compact Monochrome Laser Printer

Request a quote for prices

Brand Canon
Connectivity Technology Ethernet
Printing Technology Laser
Special Feature Auto-Duplex, Network-Ready
Color White
Model Name imageCLASS
Printer Output Monochrome
Max Printspeed Monochrome 40 ppm
Operating System Windows Server 2012, Windows 8.1, OS X 10.11 El Capitan, Windows Server 2012 R2, Windows Server 2016
SKU: 5162C006BA Categories: ,


Canon LBP236dw Overview

Machine Type Black & white laser single function
Available Functions Print
Printing Method Monochrome laser beam printing
Print Resolution Up to 1200 x 1200 dpi
Warm-up Time Approx. 5.5 seconds or less
Printer Languages UFRII, PCL 5e3, PCL6, Adobe® PostScript3
Fonts 45 PCL fonts, 136 PS fonts
Print Margins 5 mm-top, bottom, left and right
Advanced Printing Features Secure Print
iOS: AirPrint, Canon PRINT Business app
Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app
Paper Input (Standard) 250-sheet cassette
100-sheet multi-purpose tray
Maximum Paper Input Capacity Up to 900 sheet
Paper Output 150-sheet
Print Speed Single sided: Up to 38 ppm (A4)
Up to 63.1 ppm (A5-Landscape)
Double sided: Up to 31.9 ipm (A4)
Media Types Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Label, Post card, Envelope
Media Sizes Cassette:
A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 76.2 x 127 mm Max. 216.0 x 355.6 mm.Multi-purpose tray:
A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch), Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.
Media Weights Cassette (standard and optional): 60 to 120 g/m²
Multi-purpose tray : 60 to 163 g/m²
Double Sided Printing A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap
Custom size – Min. 210 x 279.4 mm Max. 216.0 x 355.6 mm
60 to 120 g/m²
Interface Type USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
Duty Cycle 80,000 pages
Processor Speed 800MHz x 2
Memory 1GB
Weight Approx. 9.5 Kg


Designed for small businesses, the Canon imageCLASS LBP236dw balances speedy performance, minimal maintenance, and the ability to add an optional paper tray. It comes with a Canon Genuine Toner 057 Starter, which yields 1,500 pages, and it also supports higher capacity 057 toners.

Workflow Efficiency
  • Supports various mobile printing solutions.
  • Designed for smaller print jobs with first print-out time as fast as 5.4 seconds.
  • Out-of-the-box, standard two-sided printing plus the ability to print multiple pages onto one page helps to reduce paper consumption.


User Experience
  • High-capacity, all-in-one cartridge helps reduce overall supply costs.
  • Create a Wi-Fi Direct hotspot from the printer to establish a direct connection to compatible mobile devices without the need for an external router.


  • A combination of fusing technologies and low-melting-point toner minimizes power requirements and helps achieve low-energy consumption.
  • ENERGY STAR certified and rated EPEAT Silver.


Other Features
  • Up to 40 ppm (letter) / up to 32 ppm (legal)
  • 1GB print memory
  • Direct print from USB: available from USB memory (JPEG, TIFF, PDF)
  • Standard paper source: 250-sheet paper cassette, 100-sheet multipurpose tray
  • Optional paper source: 550-sheet paper cassette (cassette unit-AH1)
  • Paper output: 65 sheets
  • Paper weight (cassettes): 16 to 32 lb bond (60 to 120 g/m2 )
  • Paper weight (multipurpose tray): 16 to 43 lb bond (60 to 163 g/m2 )
  • Media sizes (cassettes): letter, legal, statement, executive custom (4.1 x 5.8″ to 8.5 x 14″)
  • Media sizes (multipurpose tray): letter, legal, statement, executive envelope: COM10, Monarch, C5, DL Custom (3 x 5″ to 8.5 x 14″)
  • Standard interface: USB 2.0, 10/100/1000Base-T Ethernet, Wi-Fi 802.11b/g/n, Wi-Fi Direct connection
  • Mobile functions: Apple AirPrint, Canon PRINT Business, Mopria Print Service
  • OS compatibility: UFR II/PCL/PS: Windows 10/8.1, Windows Server 2019/2016/2012 R2/2012, Mac OS X (10.11 or later)
